Sewage Pumps

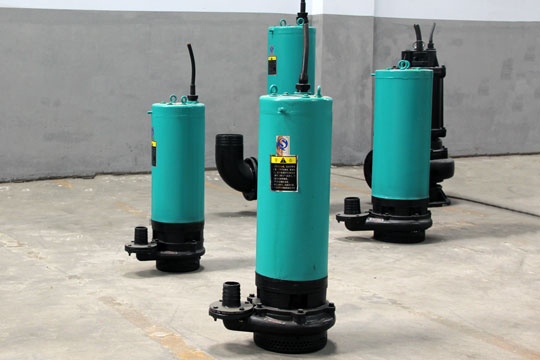

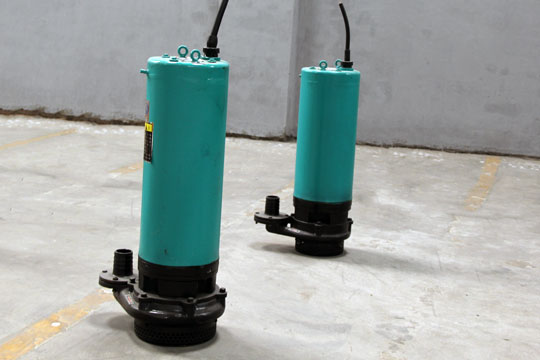

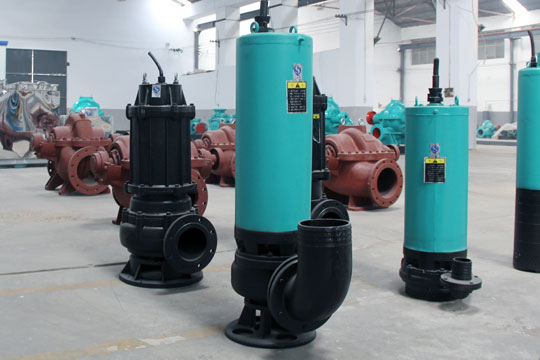

WQS water filled sewage pump

    Flow: 15-300m3/h



    Lift: 7-100m



    Caliber:



    Power: 5.5-37kw



    Temperate: <40°C

Email: [email protected]



Phone: +86-18037487502(WhatsApp)

WQS water filled sewage pump Product overview

WQS water filled sewage pump is a successfully developed new product based on advanced technology introduced from abroad and the usage characteristics of pumps in China. It is featured with obvious energy saving effect, no plugging, anti-winding, automatic installation and automatic detection etc.
It is especially effective in pumping liquid that contains solid particle or macro-fiber. This series of pumps use impeller with special structure and new mechanical sealing to deliver the liquid that contains solid particle or macro-fiber effectively. Compare with traditional impeller, the new impeller has single channel or double channel, which is like an elbow with same section size, with good fluidity. With proper volute, this pump will be very efficient. The impeller has been tested for static and dynamic equilibrium. The sewage pump can work with no vibration.

WQS water filled sewage pump Product features

WQS series high-capacity submersible pumps use special double-suction and double-channel structure. When the pump is running, the water flows into it from both ends of the impeller, and flow out from the middle part.
This series of no-blocking submersible sewage pump is a smart combination of submersible motor and double-suction pump. It not only has the function of submersible pump but also can work stably with high efficiency in the way same as double-suction pump.
High capacity submersible pump has double-suction structure, which can draw water at low level. With double-suction double-channel single spiral structure, the motor will bore no axial tensile force as the axial force is reduced and balanced. Therefore, the service life of the pump is prolonged by 3 times, efficiency increased by 15%.
High capacity submersible pump is small and compact, easy to move and install; It needs no pump house. It works when it is put under water, largely reducing project cost.

WQS water filled sewage pump Application range

Discharging heavily polluted waste water from factory and trade
Drainage systems of urban sewage treatment plant
Uptown sewage water discharge stations
Fire fighting system drainage station
Sewage in hospitals and hotels
Sewage discharge in municipal engineering and construction site
Mine prospecting support equipment
Pumping sewage with particles in such aspects as methane tank in rural area or farm irrigation.
Water supply equipment for water plant

WQS water filled sewage pump Technical parameters

Flux range: 5-6000m3/h
Lift range: 2-40 meters
Power range: 3-410kw (2nd grade speed motor, 4th or 6th grade motor)
Rotate speed: 2900、1450,730rpm (2nd, 4th, 6th grade speed motor)
Optional material: HT200、304、316、316L
When the motor is at work, its current shall not exceed the rated current value.

Model Flow (m³/h) Lift (m) Power (kw) Diameter (mm)
WQS300-25/1 300 25 37 0
WQS200-40 200 40 37 0
WQS100-60/1 100 60 30 0
WQS200-30/1 200 30 30 0
WQS100-60/1 100 60 30 0
WQS300-16/1 300 16 30 0
WQS100-50/1 100 50 25 0
WQS25-100/1 25 100 25 0
WQS200-20/1 200 20 25 0
WQS100-50/1 100 50 25 0
WQS100-40/1 100 40 22 0
WQS300-12/1 300 12 22 0
WQS150-30/1 150 30 22 0
WQS50-80/1 50 80 22 0
WQS50-70/1 50 70 18.5 0
WQS50-70/1 50 70 18.5 0
WQS100-30/1 100 30 18.5 0
WQS200-16/1 200 16 18.5 0
WQS150-20/1 150 20 18.5 0
WQS300-10/1 300 10 18.5 0
WQS300-7/1 300 7 15 0
WQS180-15/1 180 15 15 0
WQS25-80/1 25 80 15 0
WQS50-60/1 50 60 15 0
WQS200-12/1 200 12 15 0
WQS150-15/1 150 15 13 0
WQS100-20/1 100 20 13 0
WQS60-30/1 60 30 13 0
WQS150-10 150 10 11 0
WQS70-30/1 70 30 11 0
WQS50-40/1 50 40 11 0
WQS15-80/1 15 80 11 0
WQS70-20 70 20 9.2 0
WQS100-15/1 100 15 9.2 0
WQS140-10/1 140 10 9.2 0
WQS30-45/1 30 45 9.2 0
WQS15-60/1 15 60 9.2 0
WQS30-35 30 35 7.5 0
WQS70-15 70 15 7.5 0
WQS50-20 50 20 7.5 0
WQS100-12 100 12 7.5 0
WQS50-30/1 50 30 7.5 0
WQS20-45/1 20 45 7.5 0
WQS15-50/1 15 50 7.5 0
WQS30-20/1 30 20 5.5 0
WQS15-40/1 15 40 5.5 0

pump process

Packaging of Products;

Henan Bulletproof Pump Products are packed and labeled according to the regulations and customer's requests.

Great care is taken to avoid any damage which might be caused during storage or transportation.

In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)Bulletproof Standard

2)Customization

pump pack1

pump pack2

pump pack2
